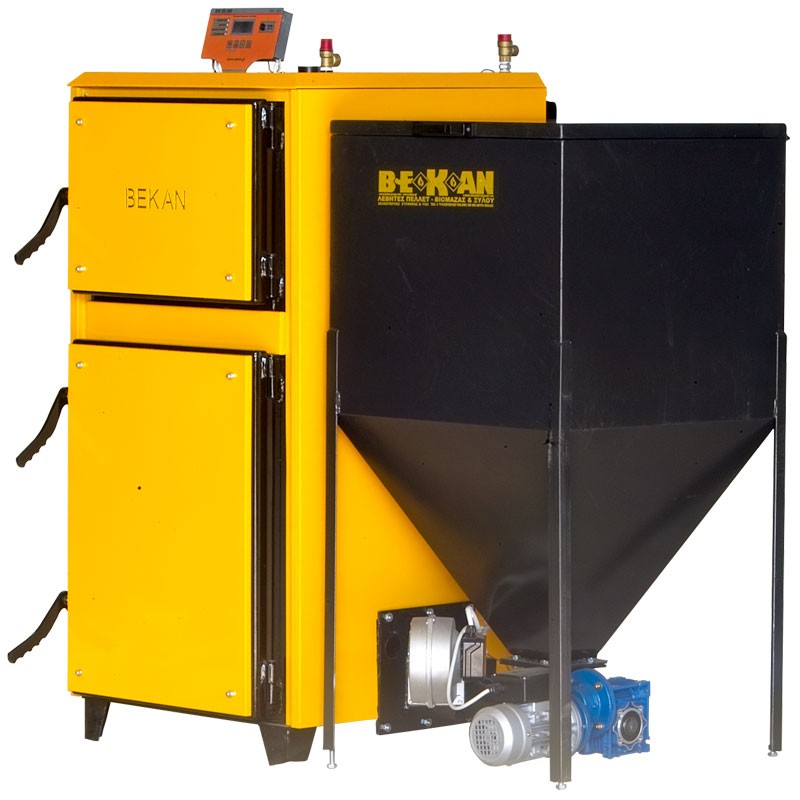

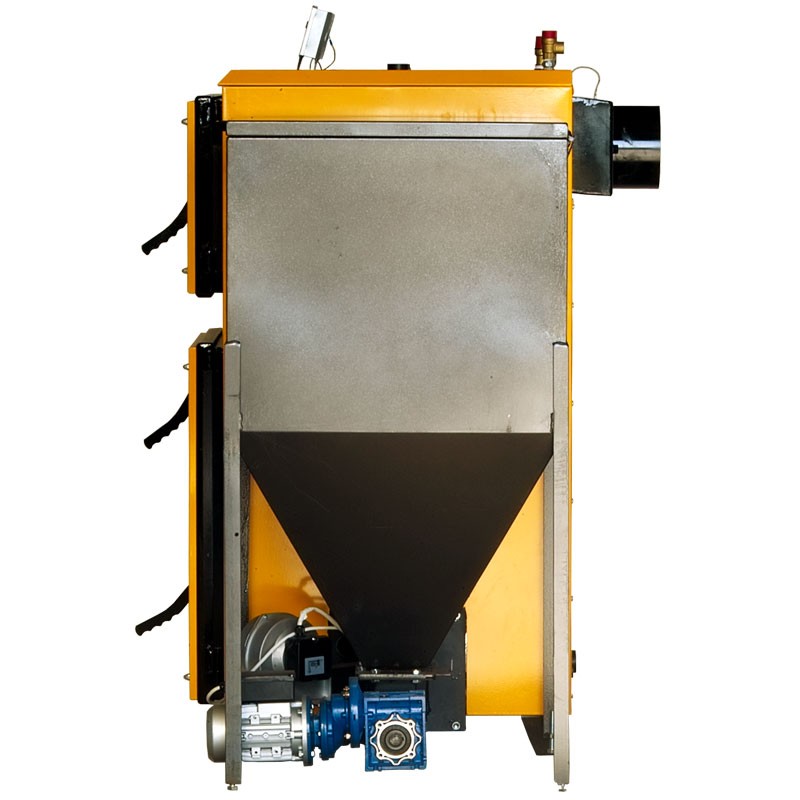

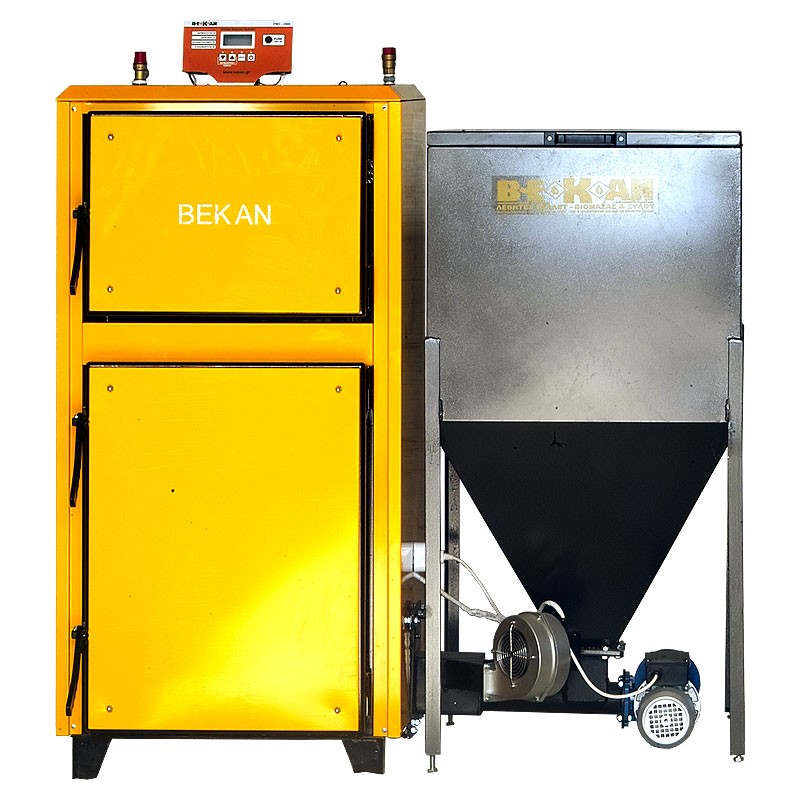

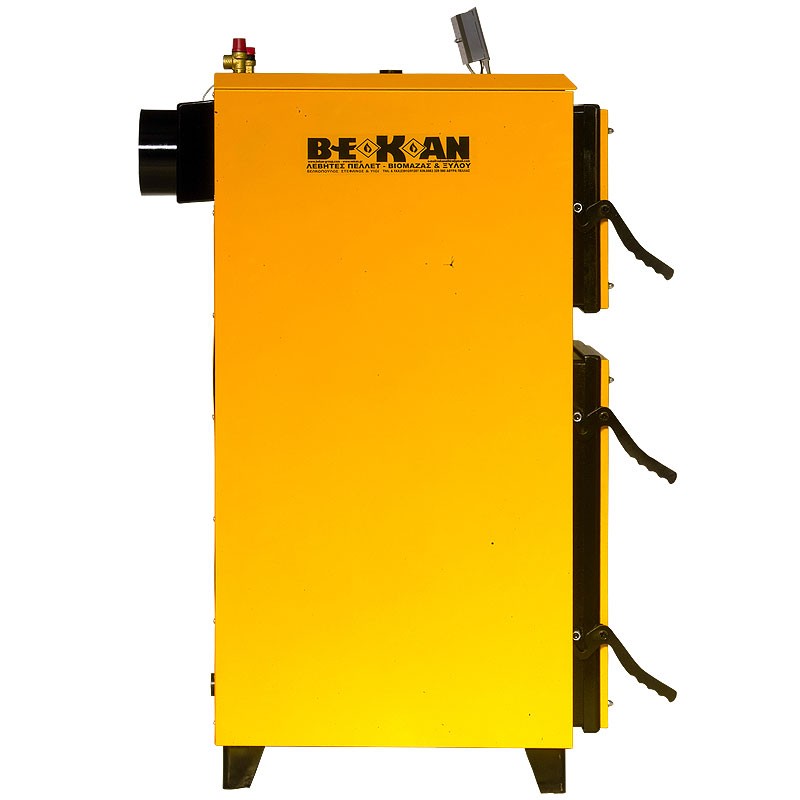

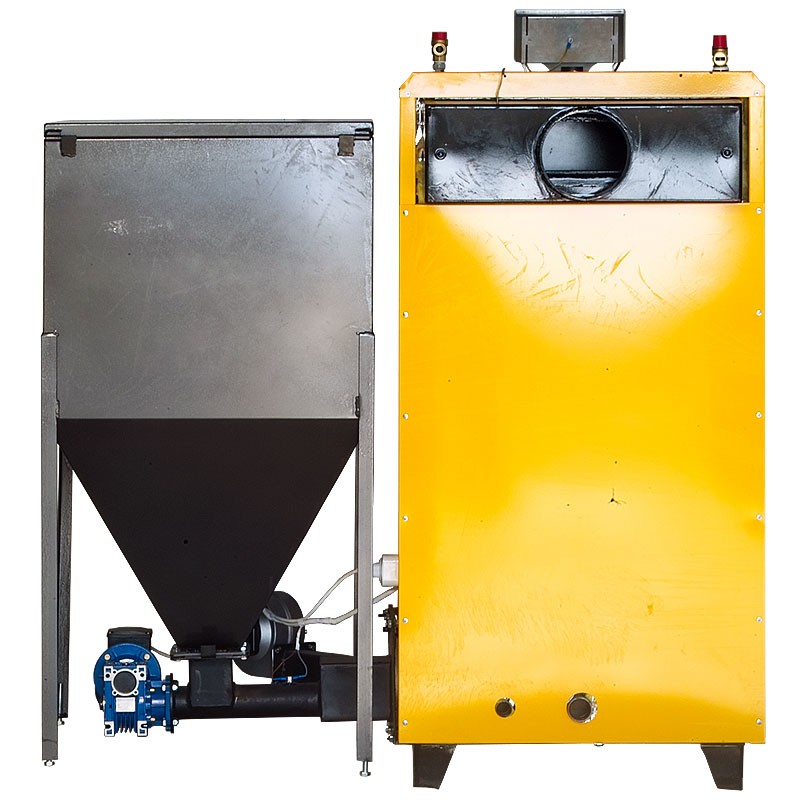

Grace GC-65
GC-65
New product
Biomass Boilers Grace
Steel biomass boilers ideal for burning olive residue, corn, olive stones, beans, sunseeds and other kinds of agropellet.
100 Items
Data sheet
| Series | Grace |
| Type | GC-65 |
| Burnig Fuel | Biomass |
| Name Value (kW) | 65 |
| Name Value (kcal/h) | 56.000 |
| Efficiency Degree | Class 5 |
| Boiler Dimensions (L x W x H) | 70cm x 62cm x 135cm |
| Water Capacity | 120lt |
| Operating Temperature | 45-85°C |
| Operating Pressure (max.) | 2 bar |
| Burning Chamber Dimensions (L x W x H) | 50cm x 40cm x 45cm |
| Weight | 280kg |
| Up Cleaning Closure (W x H) | 50cm x 30cm |
| Down Cleaning Closure (W x H) | 50cm x 75cm |
| Supply | 1 1/4" |
| Chimney Outlet | 150mm |
| Blower | 300 m³/h |
| Motor (220V - 1400 r.p.m.) | 0,09 kW |
| Control Panel | PWC-4000 |
| Tank Dimensions (L x W x H) | 65cm x 65cm x 122cm |
| Tank Volume (biomass) | 320 lt |
More info
Manufactured according to the EN 303-5 standards, multiple trailed with a pre-installed BE.KA.N BS-4000 burner.
With ample heating surface, spacious burning chamber, easy access to all surfaces for cleaning. The front has two doors, for maintenance and cleaning.
The boilers come with the electronic panel for burner BS-4000 system management, the fuel depository tank, feeding screw with motor and security valve set.
The BE.KA.N biomass boilers are available in a wide range of power offering affordable solutions and ecological heating in domestic, farming, industrial and business applications.
